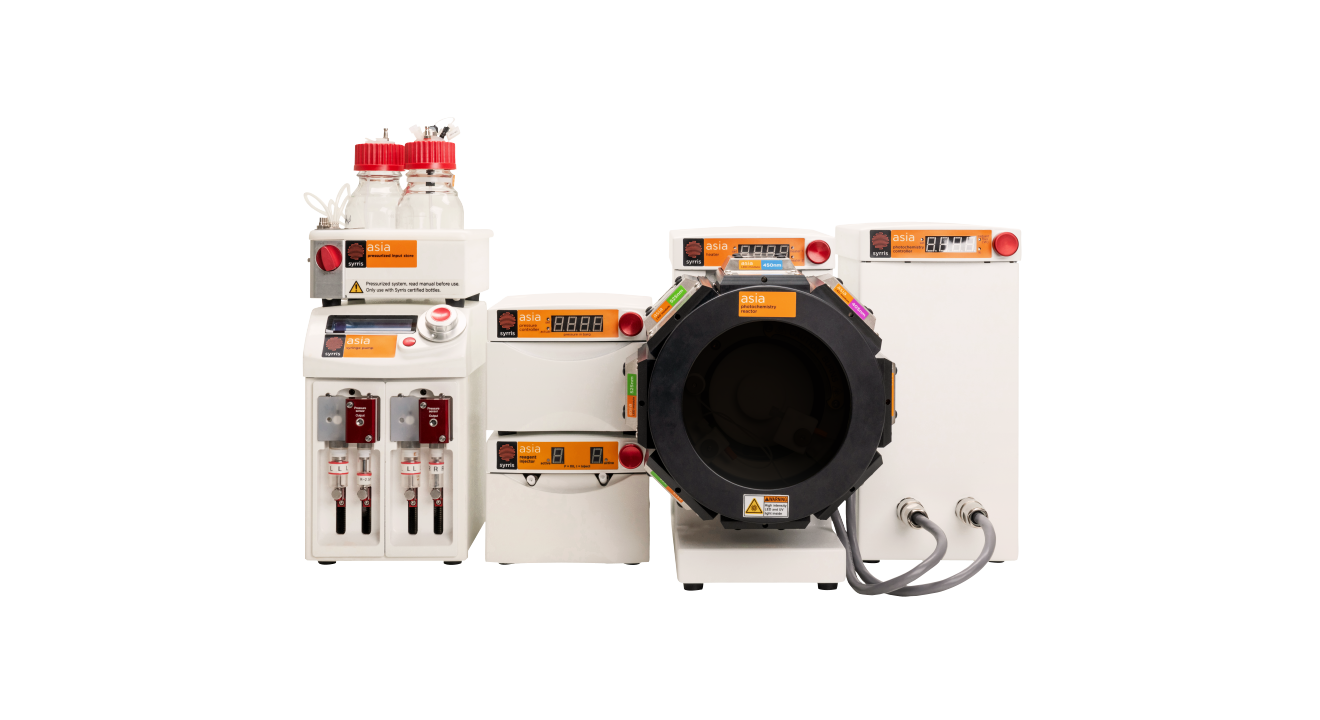

Pre-configured System

Asia Photochemistry System

従来のバッチ要件の制限を受けることなく、新規の連続光化学アプリケーション にアクセスが可能です。

View our suitable applications list

アプリケーション

この製品は、下記のアプリケーションに対応しています

一目でわかる

Syrris のユーザー特化したフローケミストリー製品設計を忠実に守り、
Asia Photochemistry System は、単一の高出力 LED モジュールを迅速
かつ簡単に交換して、条件を最適化するための反応の迅速なスクリーニングとスケールアップを可能にします。光学度を高める機能 (最大 108 W)* により、反応時間が短縮され、生産速度が向上します。

Asia Heater または Asia Cryo コントローラーを変換し、-40°C ~ +80°C の間では、外部冷却源は必要なく、正確かつ正確な温度制御を実現します。

  • Accurate temperature control, from -40°C to +80°C
  • Tune your light intensity (up to 108W)*
  • Interchangeable modules can be changed in seconds

交換可能なLEDモジュール

単色の高出力 LED モジュールは、光化学アプリケーションの正確な制御
のために幅広い波長で利用できます。

1 つのリアクターに最大 8 つの交換可能な単一波長モジュールを収容します。複数の波長で反応を実行して新しい化学にアクセス、または、同じ値の光源を最大 8 つ追加して、迅速なスクリーニングとスケールアップを行い、反応を最適化します。

反応処理数は mg’s~ 10’s g/hour.

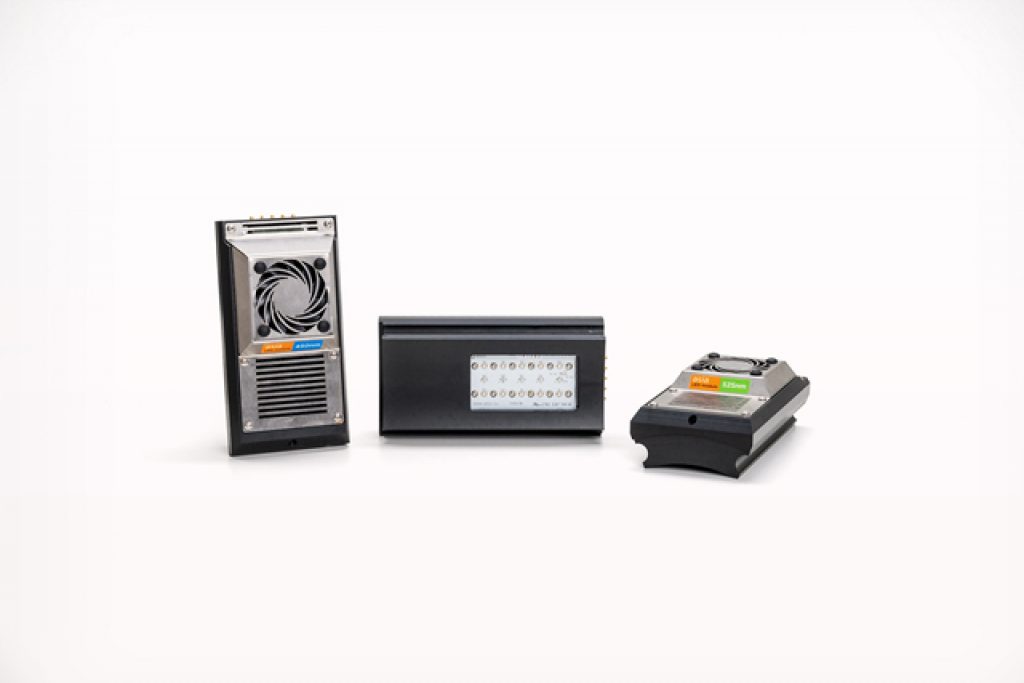

Syrris Asia Photochemistry Single Wavelength and Blank Modules

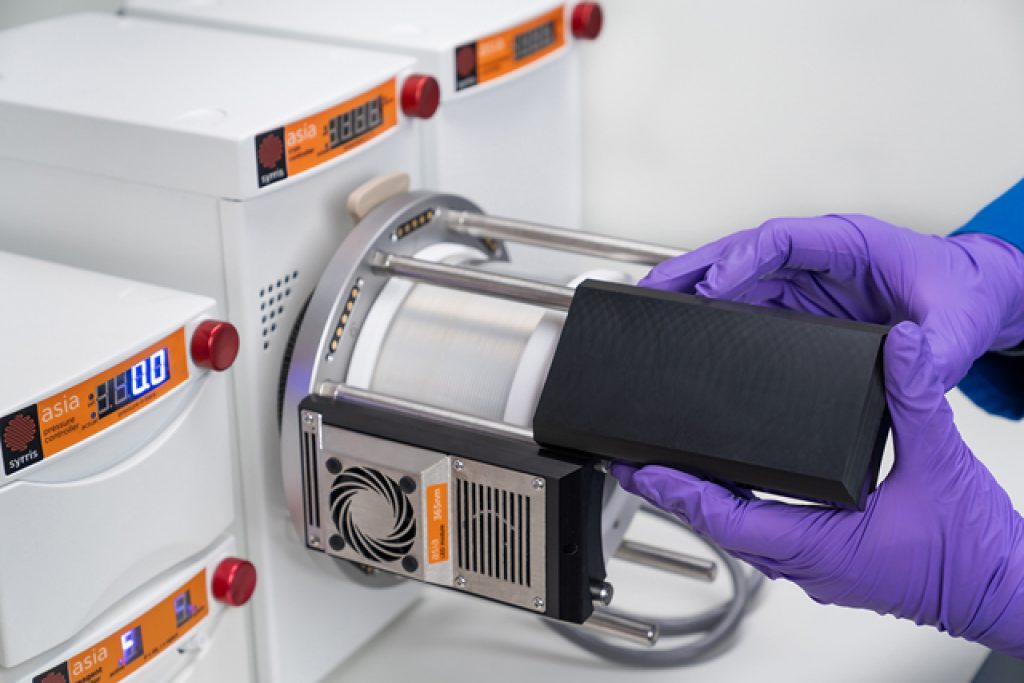

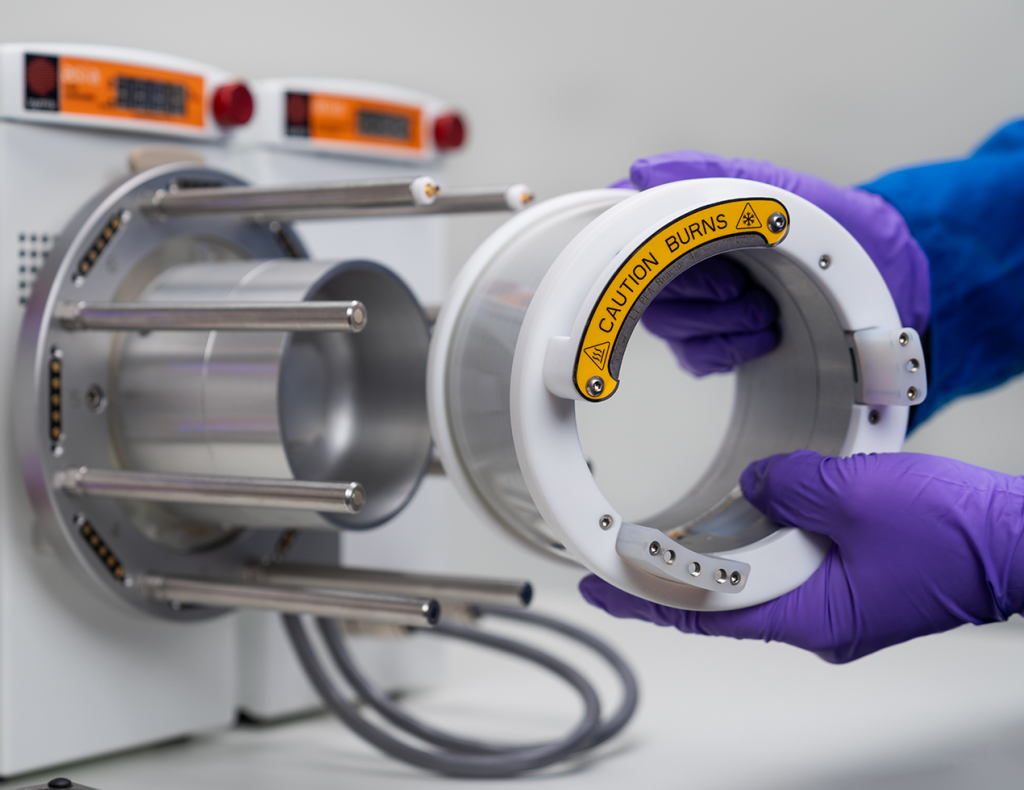

Syrris Asia Photochemistry chemist connecting blank module

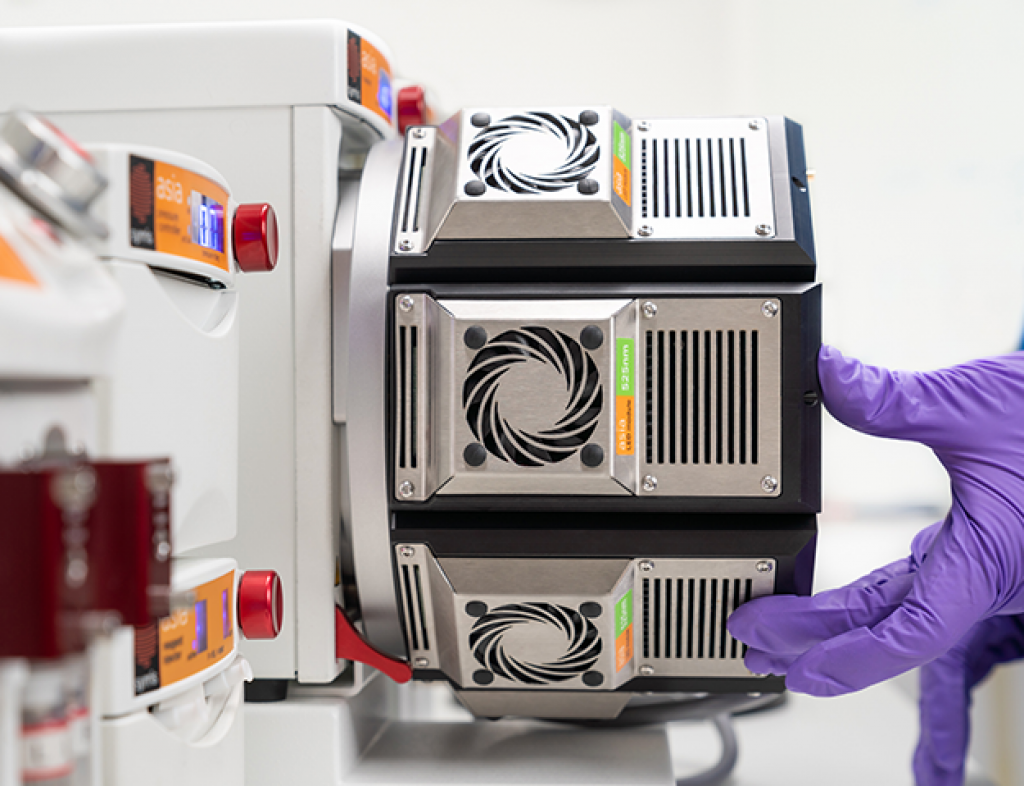

Syrris Asia Photochemistry with chemist connecting single wavelength module

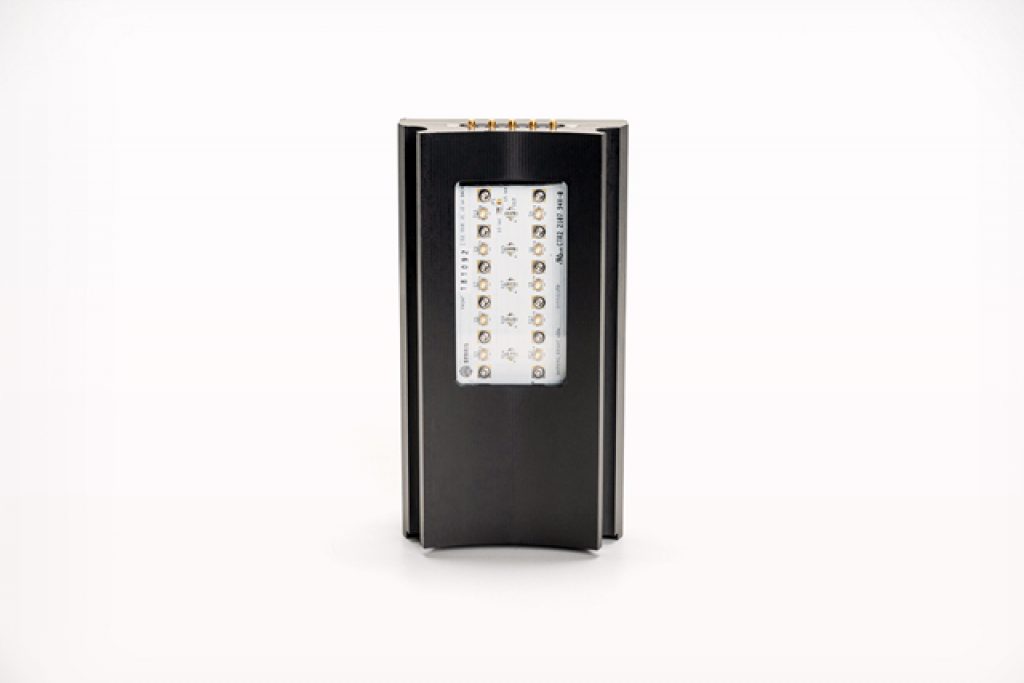

Syrris Asia Photochemistry Reactor Single Wavelength Module back

外部冷却は不要

外部冷却を必要とせずに、最大出力時でも最適なパフォーマンスを維持します。その結果、LED モジュールの寿命が長くなり、反応の温度制御が効率的に行われます。

-40℃までの低温時や+80oC までの加熱時でもLED モジュールの熱負荷が低いため、最適なパフォーマンスが可能。これにより、反応温度の制御を維持するために必要な冷却がはるかに少なくなります。

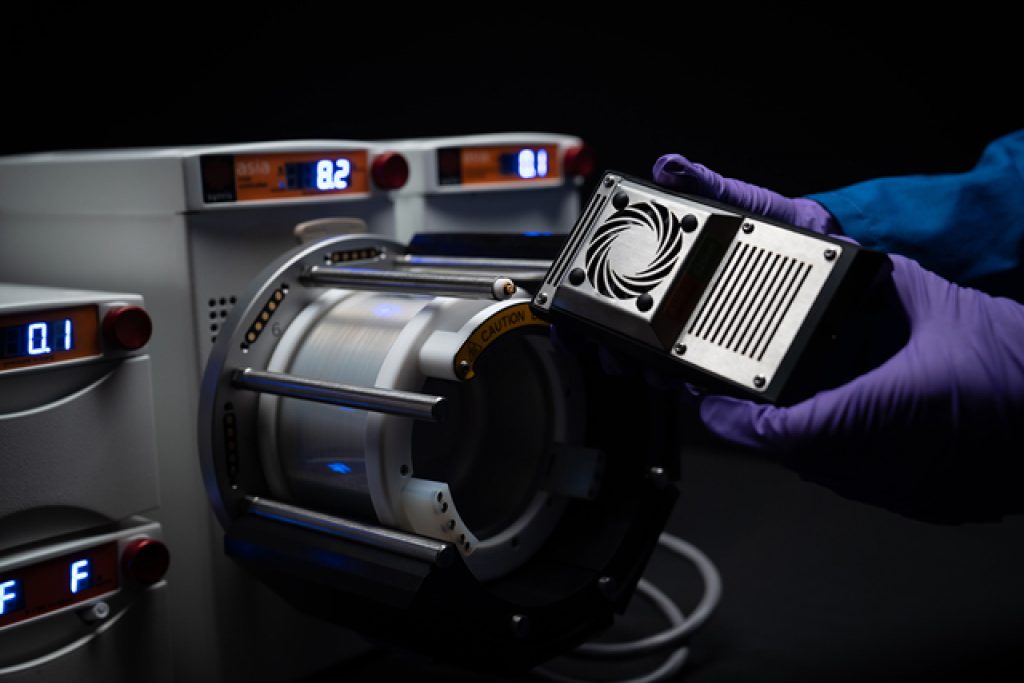

Syrris Asia Photochemistry Reactor Single Wavelength Module with chemist connecting black background

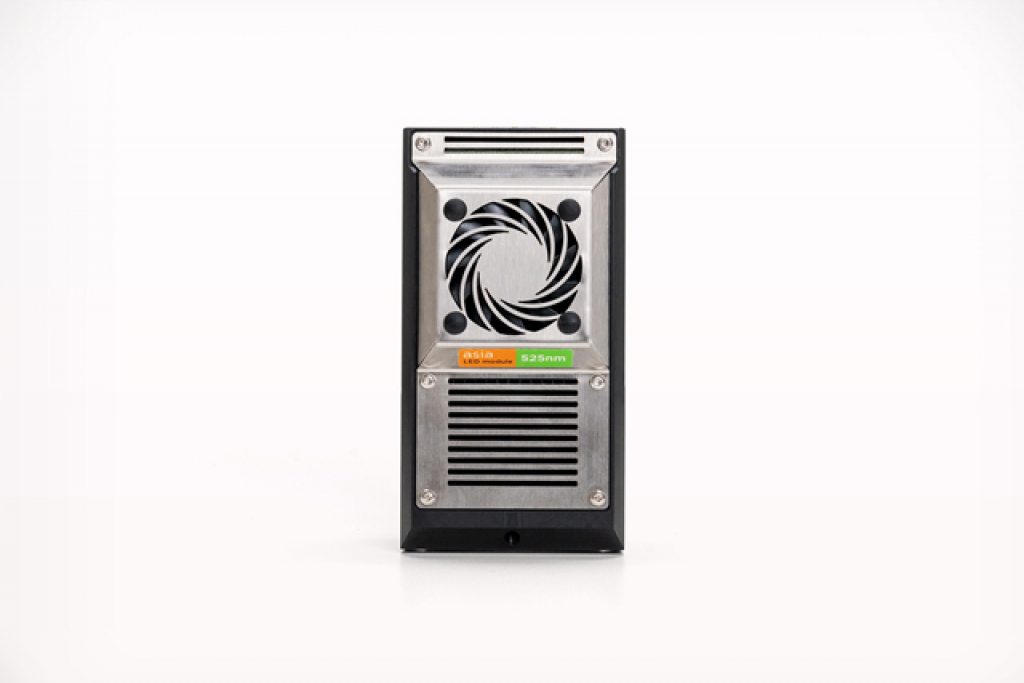

Syrris Asia Photochemistry Reactor Single Wavelength Module Front

優れた選択性と光学度

Asia Photochemistry Reactor の独自の設計により、ユーザーは幅広い波長の 選択、ゆっくりしたスケールアップ反応、反応最適化のためのより高い選択性を提供 することが出来ます。

光の強度を調整して (最大 108 W)*、反応時間を短縮し、生産率を高めます。 処理量を向上させるために追加の光源は必要ありません。

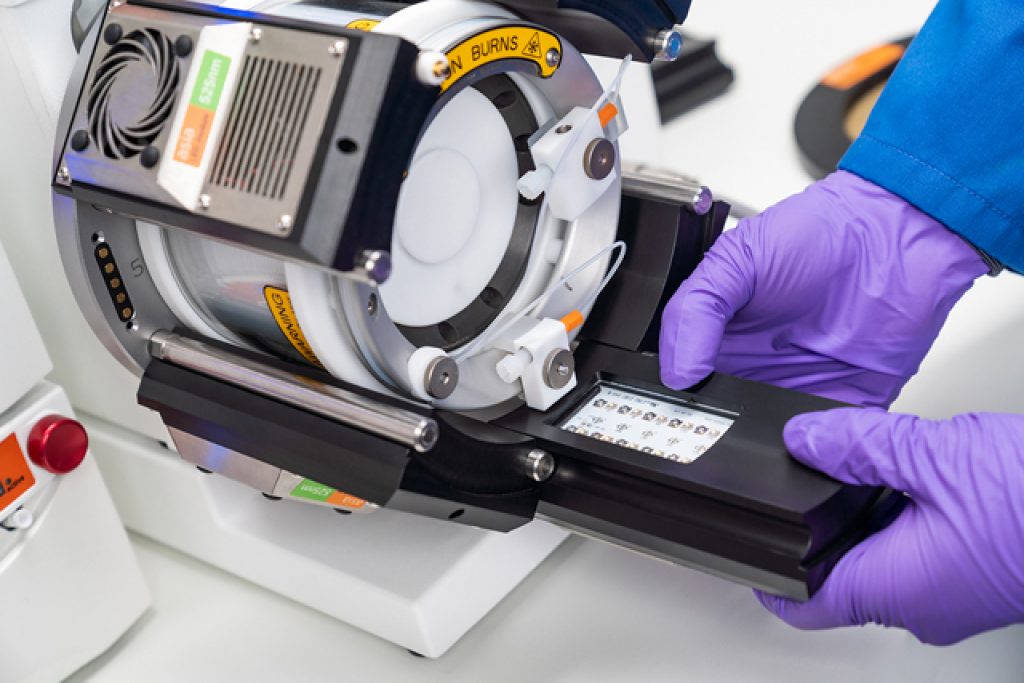

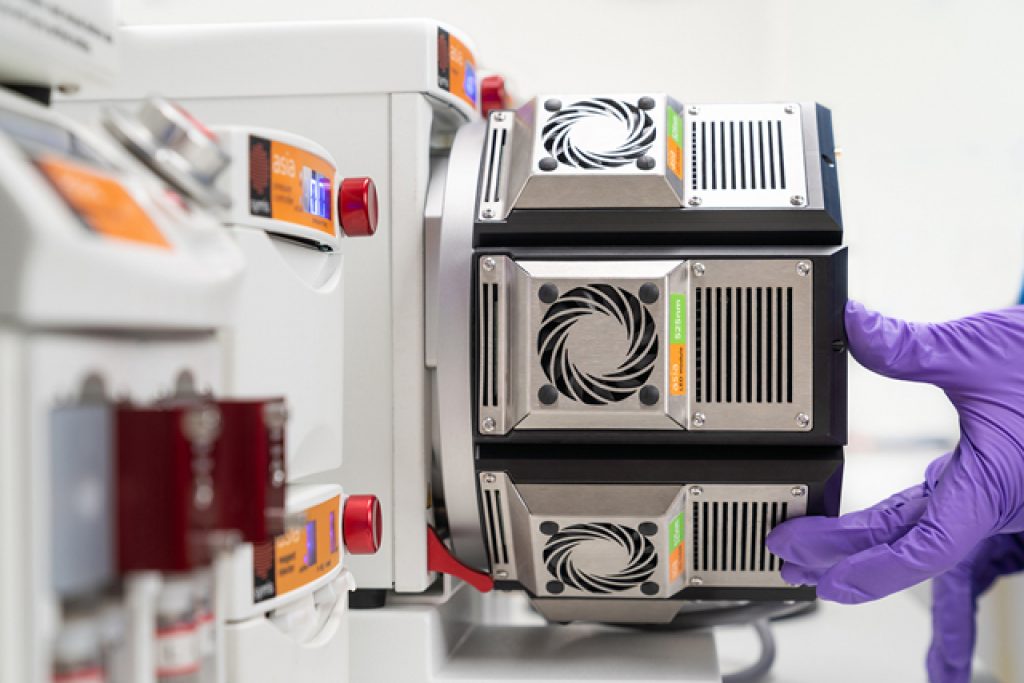

Syrris Asia Photochemistry Reactor Single Wavelength Module with chemist connecting

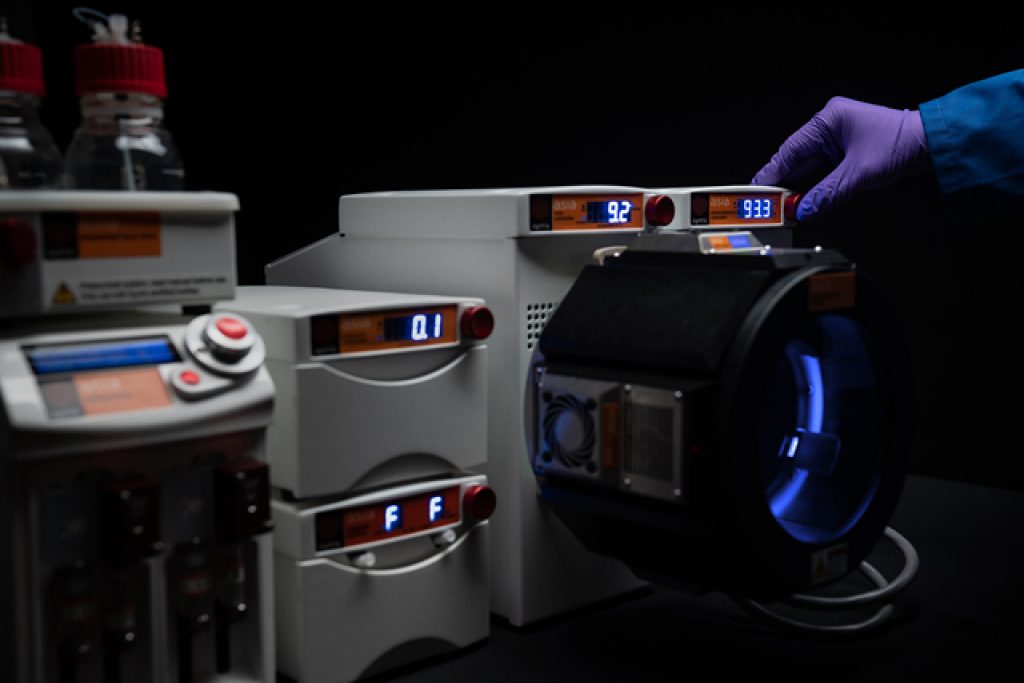

Syrris Asia Photochemistry Reactor light intensity tuned blue

In-built safety

Asia Photochemistry Reactorは、可能な限り安全になるように設計されています。連結継手と遮光設計は、高強度の光にさらされることがないことを意味します。

光源は電源に接続されていて、パーツが切断されるとライトが点灯し、
電源をただちにシャットダウンし、ユーザーへの接触を防ぎます。
換気規格内での使用に最適な安全性を提供する。

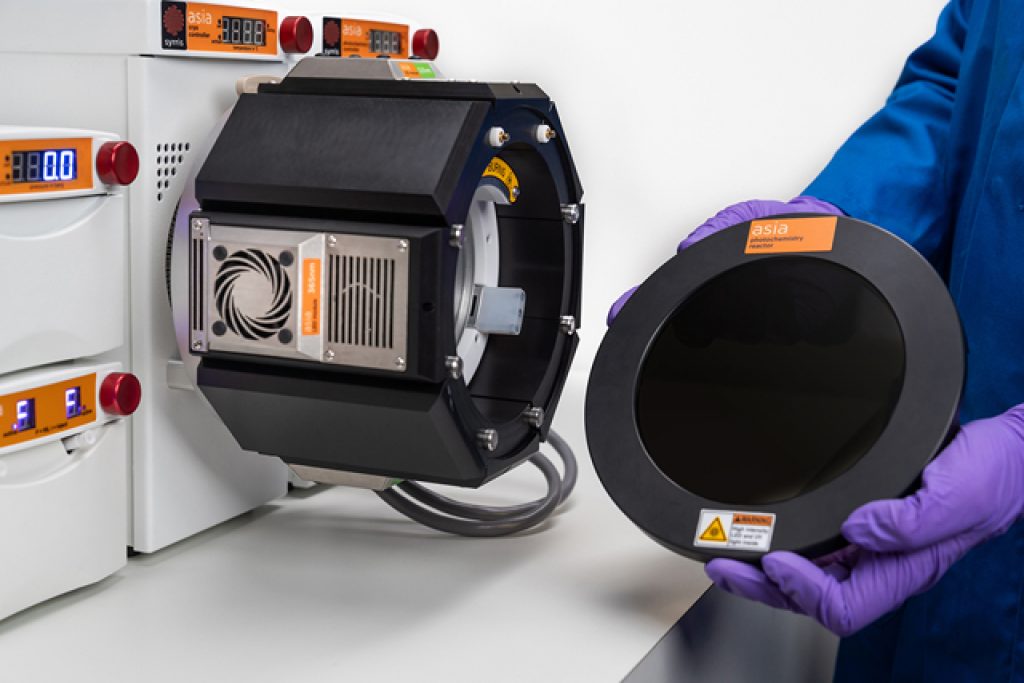

Asia Photochemistry Reactor Safety Screen with chemist

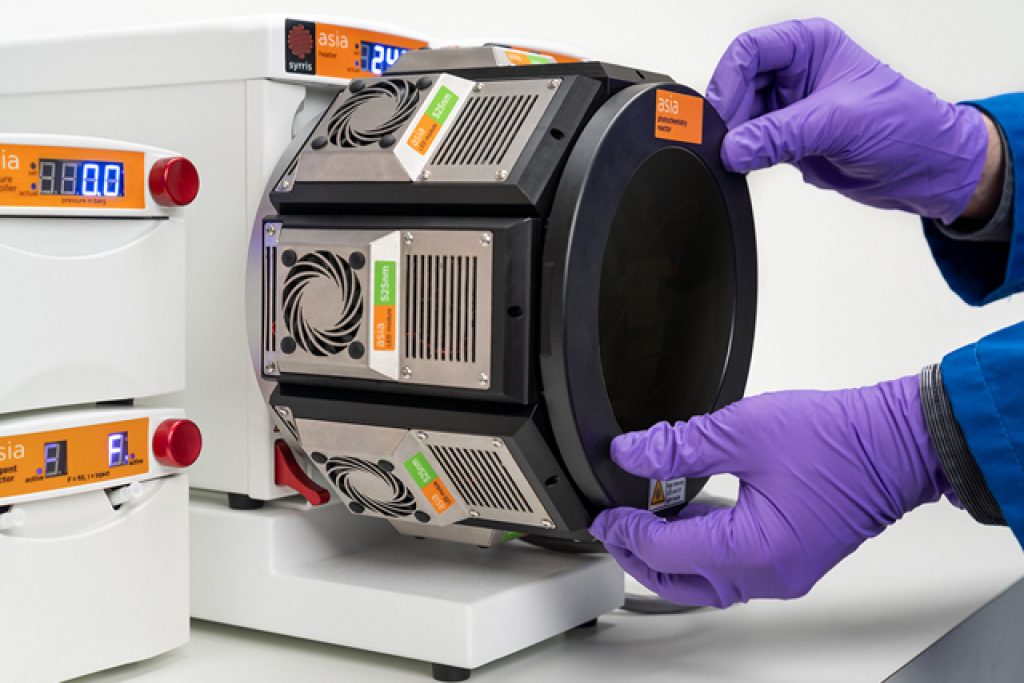

Asia Photochemistry Reactor Safety Screen with chemist attaching

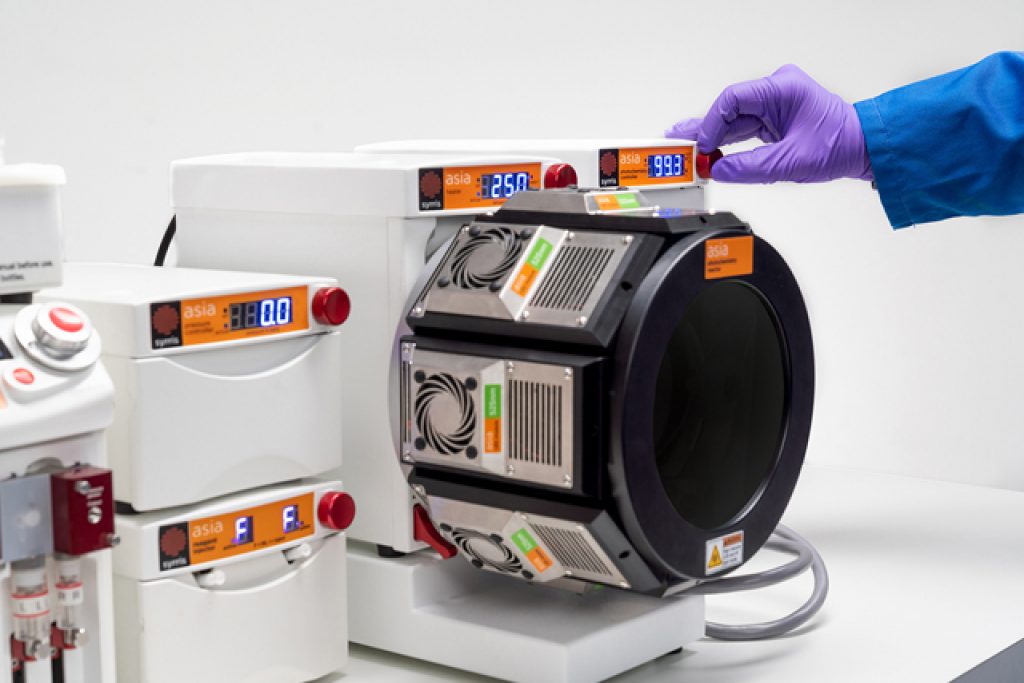

Asia Photochemistry Reactor chemist tuning light intensity

仕様

リアクター容量 4 mL または 16 mL
リアクター温度 -40°C – +80°C (アジア ヒーターまたはアジア クライオ コントローラー モジュール使用時)
温度設 定 1℃に設定、0.1℃に表示
LED モジュールの数 最大 8 x LED モジュール 固定または混合波長またはブランクモジュール
LEDモジュール波長 単色光 365、385、405、420、450、525(nm)
コントロールモジュールの表示 光の強度と光子流動
電力 10 ~ 100% の可変出力
安全性 モジュールは安全のために完全に連結されています
互換性 アジアのフローケミストリーシステム、または独立したモジュールとしての互換
寸法(Asia Photochemistry Controller) (H) 335 mm x (W) 160 mm x (D) 270 mm
寸法( Asia Cryo Controllerに組み立てられたAsia Photochemistry Reactor) (H) 335 mm x (W) 245 mm x (D) 420 mm
寸法( Asia Cryo Controllerに組み立てられたAsia Photochemistry Reactor) (H) 335 mm x (W) 245 mm x (D) 600 mm
Asia Photochemistry Tube Reactor with chemist

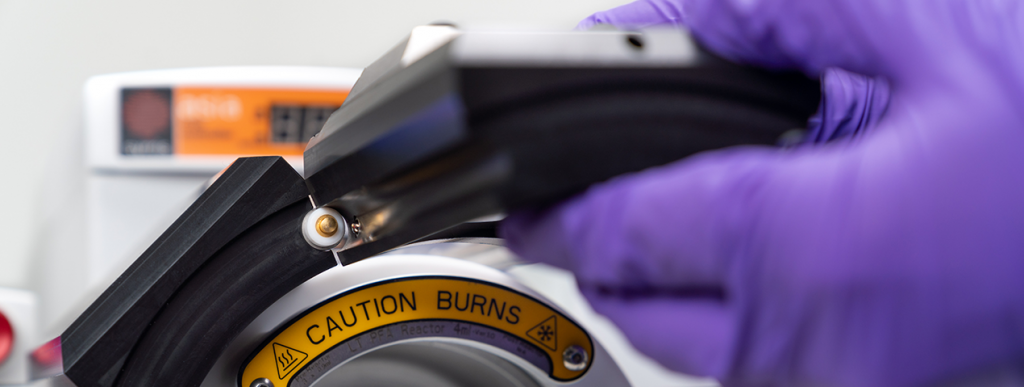

Asia Photochemistry chemist connecting blank module

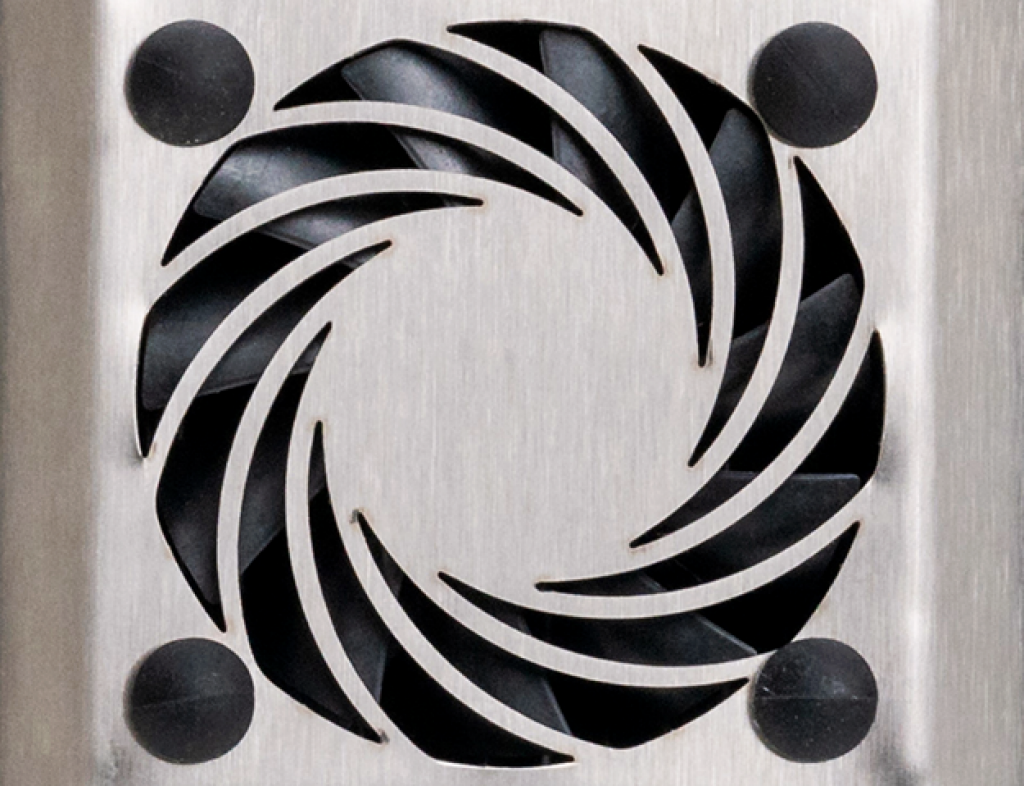

Syrris Asia Photochemistry Single Wavelength Module fan close-up
Syrris Asia Photochemistry with chemist connecting single wavelength module

What we say

The design is unique. The LED modules are housed so they can be quickly and easily changed, combined for multiple wavelengths, and allow 8 x of the same LED module for scaling. Like all things in the Asia range, this provides complete flexibility.

Andrew Mansfield - Syrris' Head of Flow Chemistry
Andrew Mansfield - Syrris' Head of Flow Chemistry

Webinar:
A Spotlight on Flow Photochemistry

Over the past 20 years, flow chemistry has had a major impact on how chemists perform their work. In this webinar, Flow Chemistry Specialist, Leandro Carvalho, shows how flow chemistry reactors for continuous photochemistry are driving the adoption of this exciting field.

This webinar covers:

  • What photochemistry is and how flow enhances it
  • Modern photochemistry applications; game-changing flow photochemical reactions that have been performed in recent years
  • How you can expand your chemistry with Asia Photochemistry Reactor
A Spotlight on Flow Photochemistry
Over the past 20 years, flow chemistry has had a major impact on how chemists perform their work. In this webinar, our Flow Chemistry Specialist, Leandro Carvalho, puts the spotlight on continuous photochemistry.
Achieve unparalleled accuracy
Staying true to Syrris’s user-focused flow chemistry product design, Asia Photochemistry Reactor enables the quick and easy interchange of single, high powered LED modules for rapid screening

Modules

  1. Pumping

    • Asia Syringe Pump

      (optional)

      Available in
      1 included, with option to add more

      Asia Syringe Pumpは、そ […]

      View module details
  2. Flow Reactor
